STATIONARY COLD SAW

STATIONARY COLD SAW

Product Introduction



SPECIFICATION OF COLD SAW BLADE


OD (mm)

Kerf (mm)

Body Thickness (mm)

Bore (mm)

Teeth

Pinhole

285

2.0

1.7/1.75

32

60

4/11/63

72

80

100

120

315

2.25

2.0

32

60

4/11/63

72

80

100

120

360

2.6

2.25

40

60

4/11/90

4/16/80

72

80

100

120

380

2.6

2.25

40

40

4/11/90

4/16/80

60

72

80

100

120

425

2.7

2.25

50

60

4/13/90

4/16/80

80

100

120

460

2.7

2.25

50

60

4/13/90

4/16/80

80

100

120

560

3.0

2.5

50

60

4/21/120

80

580

3.0

2.5

80

60

4/21/120

80

100

Max diamater 700mm can do. More Sizes,Bore and Pinhole also can be customized


FEATURES

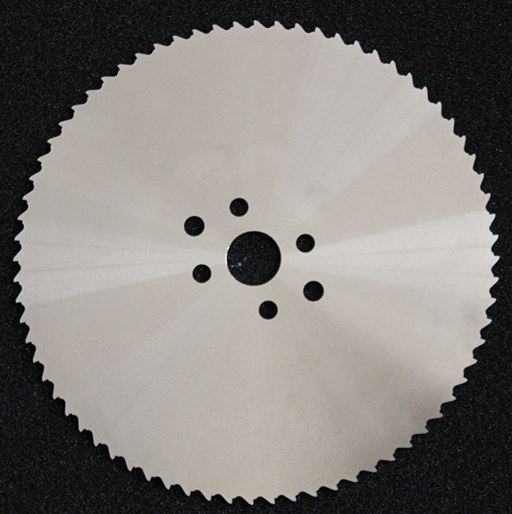

1.     Saw plate

JUNWEI use Japan SKS51 steel. Our proprietary flattening and surface grinding processes ensure plates that are distortion free and have uniform thickness. A good plate with high stiffness is essential for straight running of the saw.









              Japan SKS51 Steel



                      △    Excellet cut quality

                      △    Perpendicular cut

                      △    Long lasting

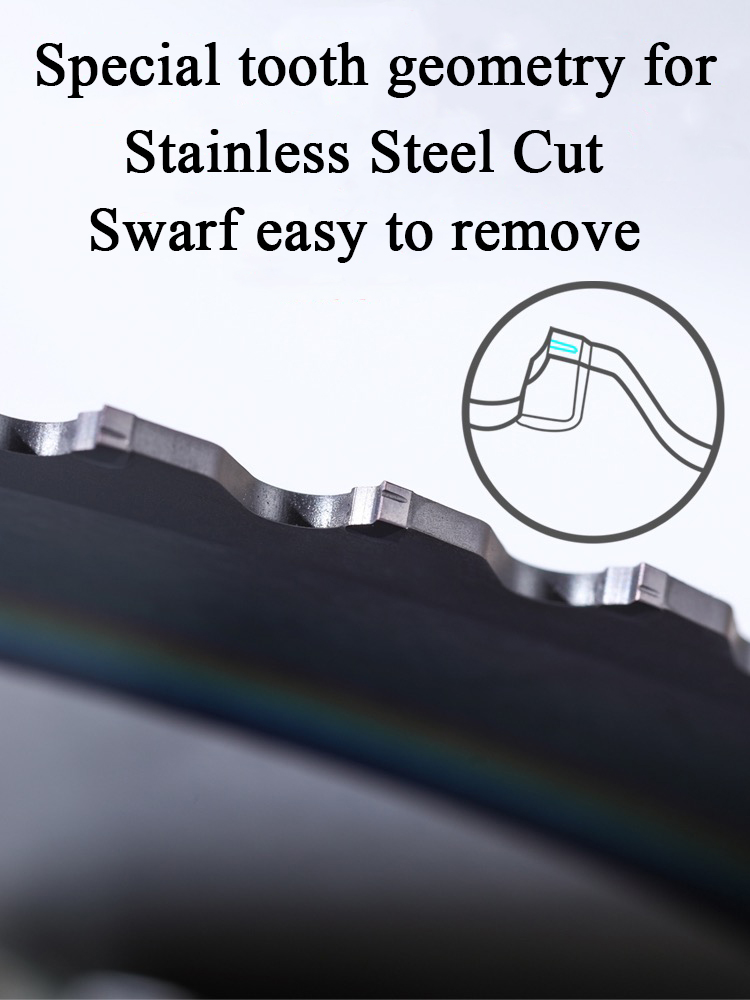

 2.     Tooth Geometry

 △    Lower cutting forces: Lower temperature/ Lower noise/ Lower power consumption

 △    High resistance against chipping : Longer edge life

 △    Good swarf curling: Better cut surface/ No swarf adhesion into the gullet



 3.    Our special brazing technology leads to a higher braze joint strength and therefore teeth are firmly attached to the plate to prevent carbide breakage.



  4.   Due to originally developed coating, our cold saw blade provides the longest lifetime and stable performance for maximum productivity and the lowest cost per cut.












CERMET COATED COLD SAW


Application

Solid bar cutting for make steel billet –for Forging process

Solid and Tube Carbon steel, alloy steel cutting

Sationary cutting machine



Cutting Conditions

Cutting Speed 60-120M/Min

Tooth Rate: 0.03-0.08mm/Tooth






CARBIDE COATED COLD SAW


WeChat picture _20230203182723.jpg

Application

Stainless steel cut

Sationary cutting machine



Cutting Conditions


Cutting Speed 50-90M/Min

Tooth Rate: 0.02-0.08mm/Tooth
